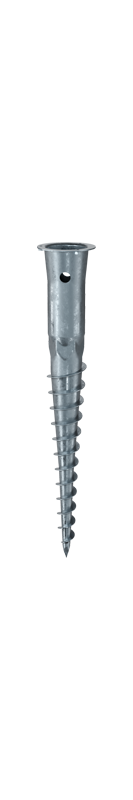

E 89x800-E60
Information
| Nominal length | 800 mm |
|---|---|
| Weight | 4,30 kg |
| Article number | 24080 |
| Affliction * | 22,50 kN |
| Inner diameter | 81.70 mm |
| Alignment area | 3° (with excentre) |
| Thread | 3xM8 |
| Pitch circle diameter | 118 mm |
| Flange outer diameter | 136 mm |
| Flange thickness | 3 mm |
Processing
- Coating: Hot-dip galvanised according to DIN EN ISO 1461
- Continuous welded helices
- Patented conical body hammered from a length of pipe
The specified values for the possible external load-bearing capacity were determined for soil: loam, semi-solid (TL; TM). The information is only given for a first selection of possible screw foundation types in the design level. The basis for a final foundation design are load tests on site as well as a static verification of the internal load-bearing capacity of the KRINNER screw foundations. The Construction Products Act, the Construction Products Regulation, other regulations of the EC and the respective state building regulations must be taken into account.
Description
The E-series ground screws can be optionally equipped with an excentre set depending on the application. The excentre set allows you to make precise adjustments and ensures a perfect, vertical positioning of the object that you want to install. The system is particularly suitable for the resonance and vibration dampening installation of poles and masts for example.
